＜Overview of manufacturing equipment＞

In developing and manufacturing release liner, "cleanliness" is inevitably critical.At Fujiko, to always provide product of high cleanliness, we have been raising factory standards by equipping high-tech manufacturing facility,testing equipment as well as our staff skills etc.

【Main advantages】
  • ◯Capable to support substrates width up to 1600mm
  • ◯Possible for combination use of thermal cured and UV cured system.
  • ◯Possess 3-coating head machine, which allows 3 coating at one pass production.
    　　(Front side: 2 coating, Back side: 1coating)
  • ◯Coating room: Class 10000
    　Coating head: support clean coating at Class 1000

【Manufacturing system】

Substrate thickness 6μm〜200μm
Substrate diameter 〜φ1,000mm
Substrate load 〜1,000kg
Coating width 〜1,600mm
Product finished width (slit) 〜1,600mm
Product finished diameter (slit) 〜φ1,000mm
Core 3inches/ 6inches plastic/FRP core
Attached equipment winding deviation correction apparatus/ foreign particle-defect detection device/ cleaning roller

【Facilities photos】

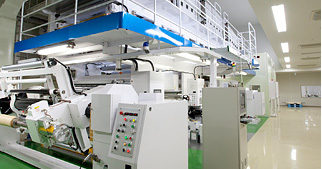

Coating room（class 10,000）
coater head part（class1,000）
Air shower
Clean slitters（class1,000）
